- High speed gravity testing handler（Action series）
High speed gravity testing handler（Action series）
A2
More simple & More robust
More efficiency & More economy
Applicable Package：SOP, SSOP, TSSOP
Test site：Dual site (Pitch 60mm)
Temperature mode：Ambient
Contactor type：
Standard (Short contact)PTB(Long contact)
|  |
 |  |
 |
 |
General Specification
| Handler Model | Action Series (A2-150) |
| Applicable Packages | SOP,SSOP,TSSOP |
| Test site | Dual site |
| Temperature mode | Ambient |
| Contact type | Standard (Short contact), PTB(long contact) |
| Socket type | Kelvin, non-kelvin , 3rd party |
| Tube Auto Loader | Up to 40 tubes (SO150) |
| Tube Auto Unloader | Up to 40 tubes |
| Tube manual unloader | 5 single tubes |

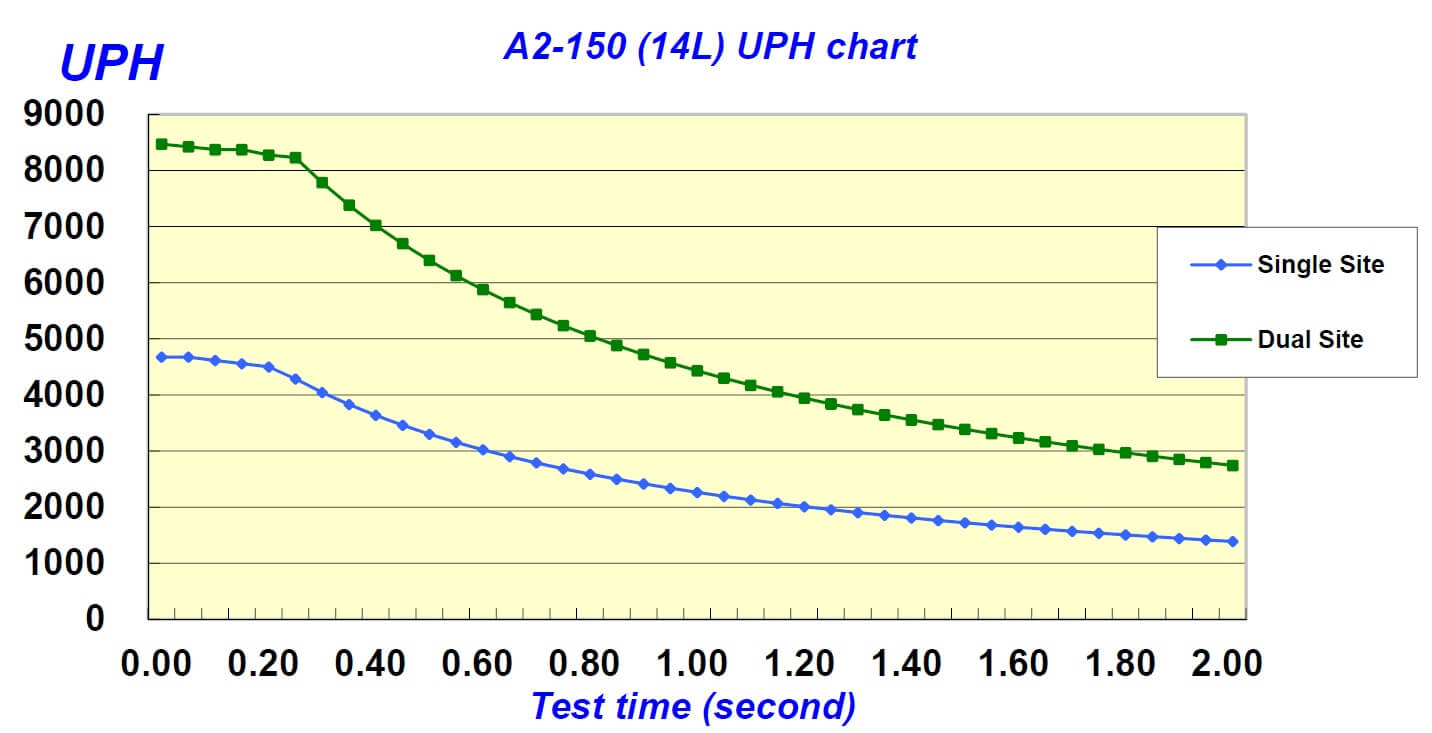

| UPH | See UPH Chart |
| Index Time ( > 0.2 test time) | 0.59 sec / single site；0.625 sec / dual site |
| Jam Rate | 1/6000 pcs for SO150 |
| Test Interface | TTL / RS232 / GPIB (option) |
| Contact Mode | Synchronous / Asynchronous |
| Weight | 150Kg |
| Height | 190 cm |
| Footprint | 660mm x 750mm |
| Power Supply requirement | AC 220V, 50/60 Hz, Single Phase |
| Compressed Air Supply | 5.5 to 6 Bars, Dry filter Air |
