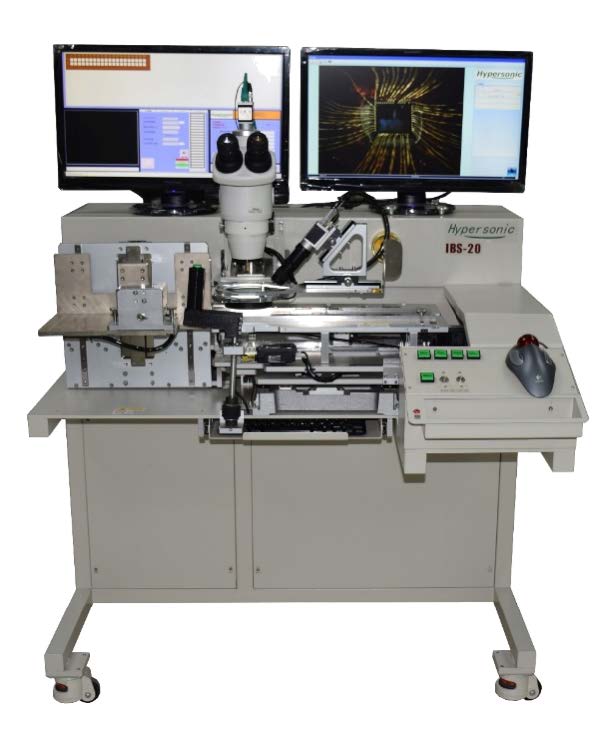

IBS-20/30/50
IBS-50
Features：
- Semi-auto Wire Bonding inspection
- Slope-view function
- Easy to operate by Chinese/English HMI
- Magazine elevator: Loading/unloading
- Smart pusher / Safety gripper
- Auto and Manual X-Y table for index units
- Stereo Zoom Microscope with CCD
- 1D/2D bar code reader
- Web service
 |  |
| IBS-50 | IBS-20/30 |
General specification：
Package capability
Leadframe & BGA substrate & Carrier boat
Width : 30 to 100mm
Length : 220 to 300mm
Cassette Elevator
Auto single Cassette loading/unloading
Programmable pitch
Workholder station
Automatic X-Y table ( IBS-50 )
Manual X-Y table ( IBS-20&30 )
Leadframe obstruction detection
Leadframe clamping to inspection area
Inspection system

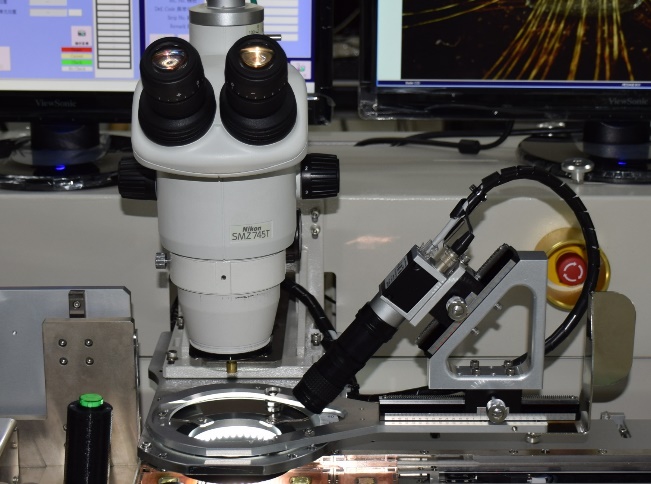

Stereo Zoom Microscope : Nikon (same level scope)
Slope-view function

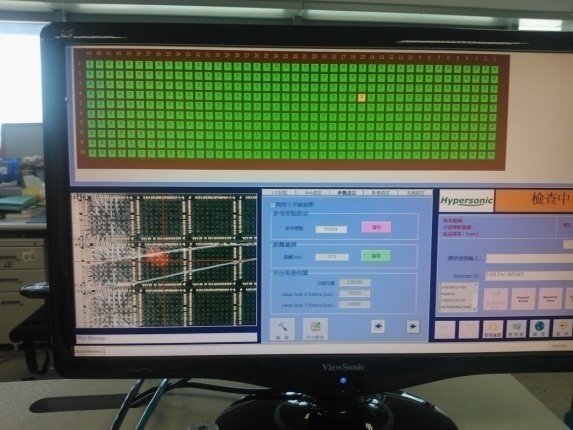

Operation interface (HMI)
Chinese / English switch
Selectable or programmable sampling units
Package set up
Reject / Rework code capability
Image can be saved for loading image or printing
Joystick function
