KGK

KGK has an overwhelming share of the automatic inspection system market. What keeps KGK on the road to success is our strong emphasis on development and design supported by our distinguished engineering staff. KGK's engineers, who make up the majority of our staff members, dedicate themselves to hi-tech development.
With high speed and advanced imaging technology, KGK’s easy-to-operate systems enable top quality production of reliable CSP and TAB tapes.

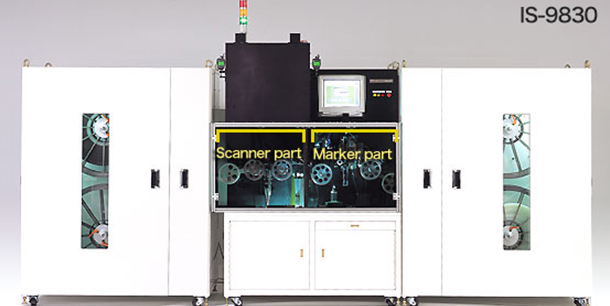

CSP/TAB Tape Inspection Systems

With high speed and advanced imaging technology, our easy-to-operate systems enable top quality production of reliable Chip Size Package(CSP) and Tape Automated Bonding(TAB) tapes.



Via Hole Inspection System

At a fast speed of 40mm per second, KGK's Via Hole Inspection System provides high quality detection for ball pads on rear side of CSP tape.



KGK Web Inspection System

Detectable Defects min 150μm Scratch, Dent, FM, stain, spot, line
Detection Method Subpixel width measurement Line-shape, line direction comparison. Grey level check for surface defects
Thickness 1~200μm
Inspection Width 1300mm
Transportation Speed Max 40m/min (670mm/s)
